Cylinder 50cc OM Airsal 40 km/h Puch Maxi, X30 and other models complete set

Airsal 40 km/h cylinder set complete with 22mm original look exhaust with logo!

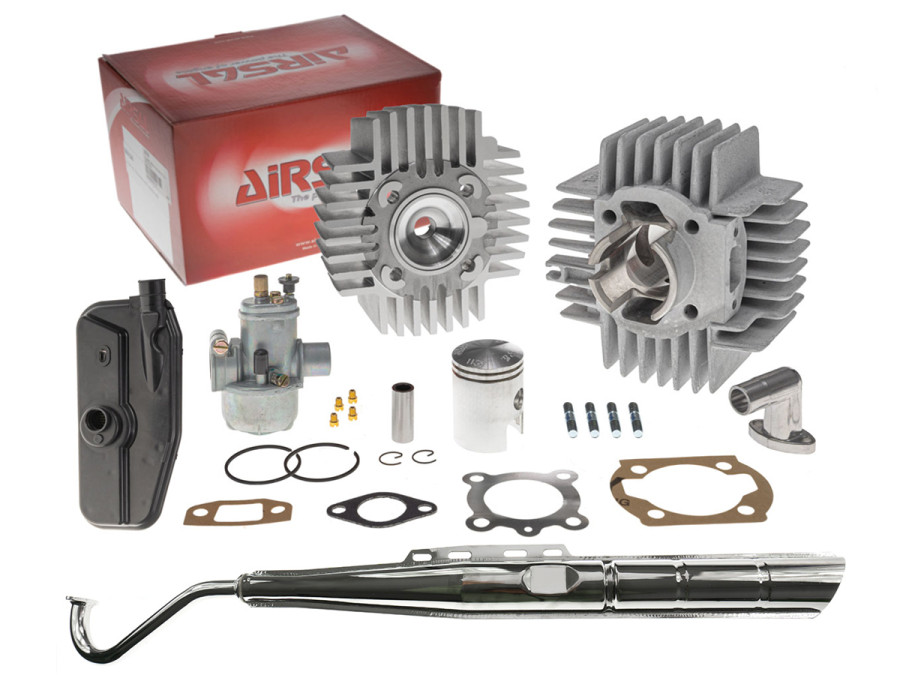

Set contains:

• Airsal 40 km/h 50cc 38mm cylinder
• High pressure head old model
• Bing 15mm replica (3.5mm jet)
• 15mm manifold
• Airbox stock as original

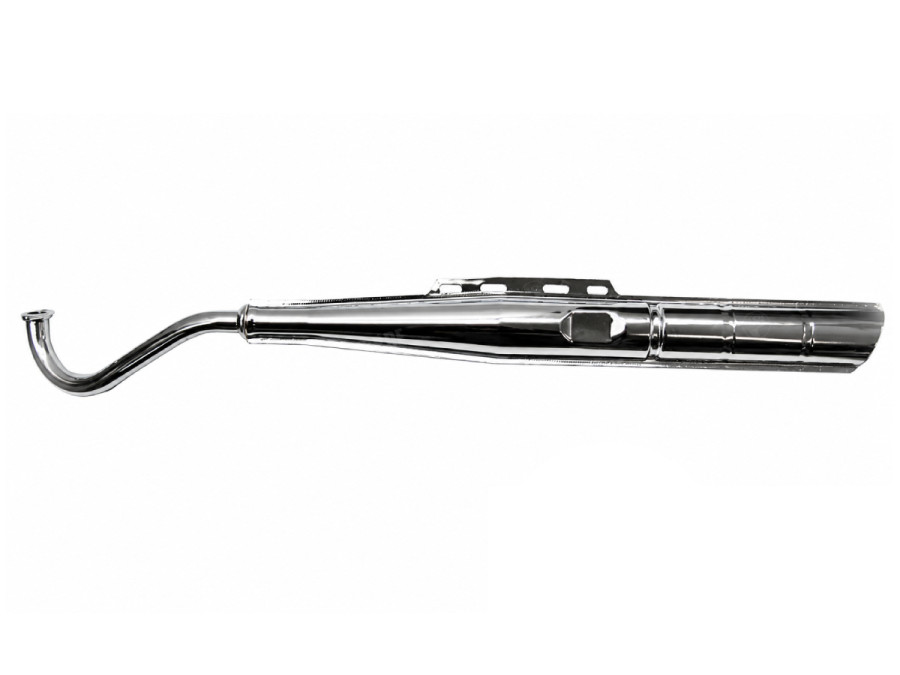

• Exhaust Puch Maxi / E50 22mm Jamarcol original-look with Puch logo
• 3.5mm jets 62-64-66-68

Specifications cylinder

•  Aluminium OM with nicasil wall.

• Piston (piston pin 12mm) and gasket sets included.
• This is the 40 Km/h version! (replacement cylinder)
• Nice allround cyilinder.
• Cylindersleeve outer diameter: 48mm

Bing 15mm carburetor replica

• Connection diameter of the manifold 20mm
• Connection diameter of the air filter 20mm
• Nozzles/jets suitable for this carburettor are Bing 3.5mm jets/nozzles
• Carburettors are delivered with a blank nozzle/jet, of which the size is unknown.
• Carburettors should always be cleaned before installation.

Before mounting

• We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Models

• The cylinder is compatible for use on a Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30, Korado, Manet and KTM hobby with E50 / Z50 / ZA50 engine. Just note that you may have to make some modifications. Want advice on whether this cylinder fits your moped? Please contact us.

Note:

• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!
• So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.
• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
