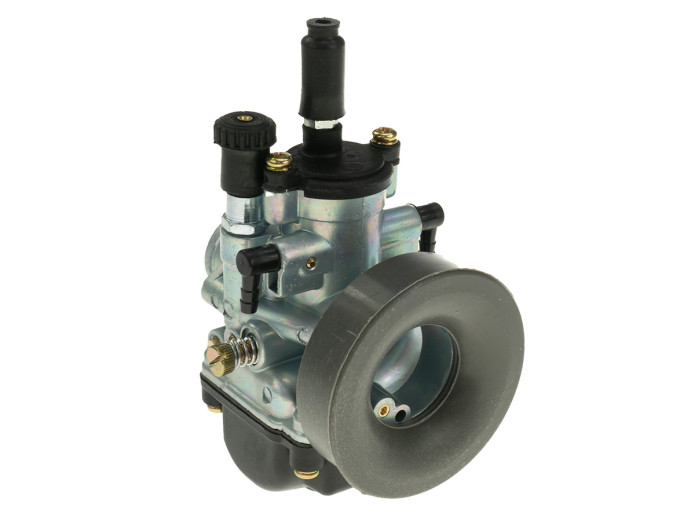

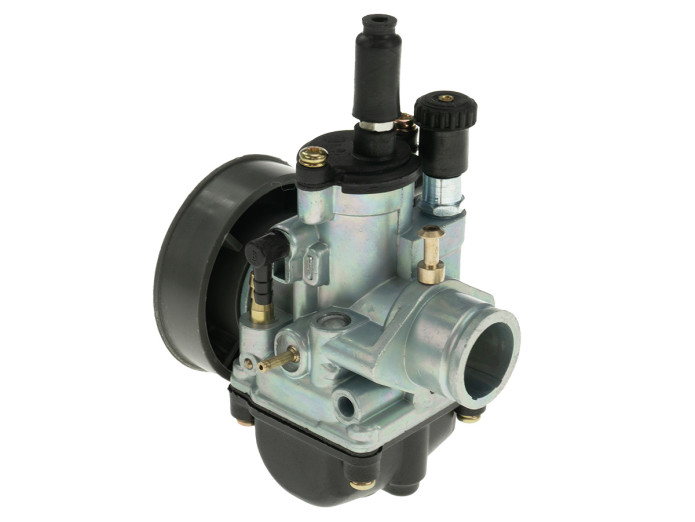

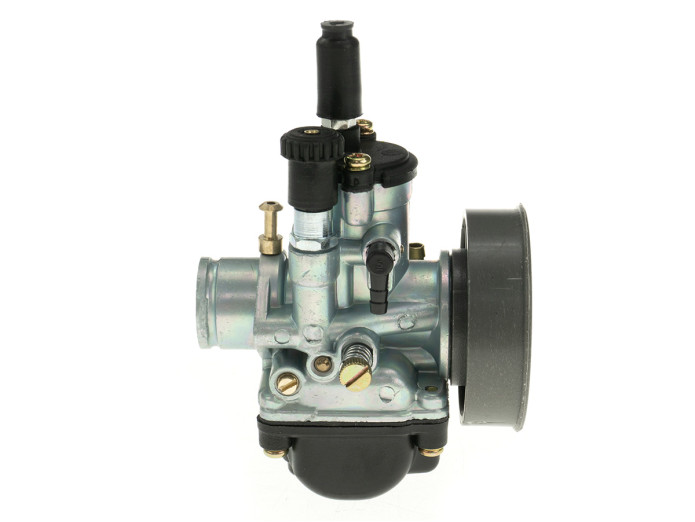

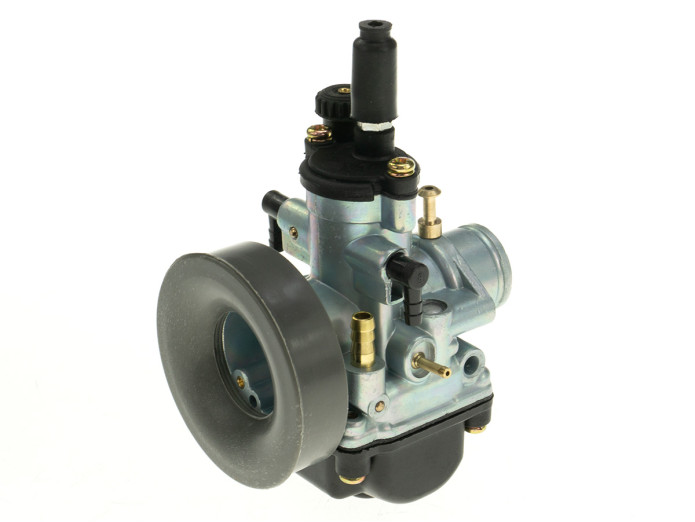

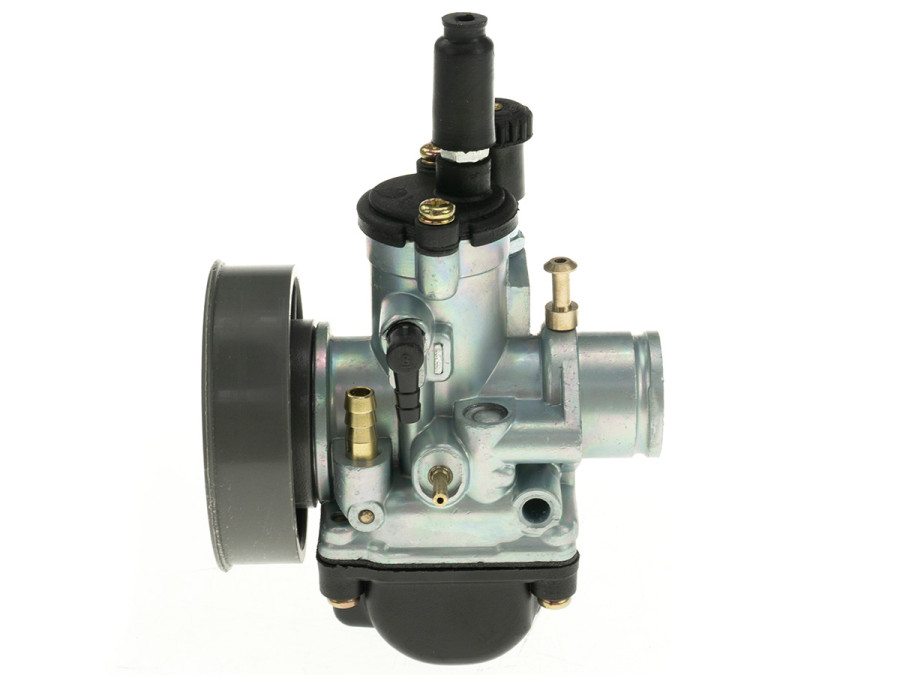

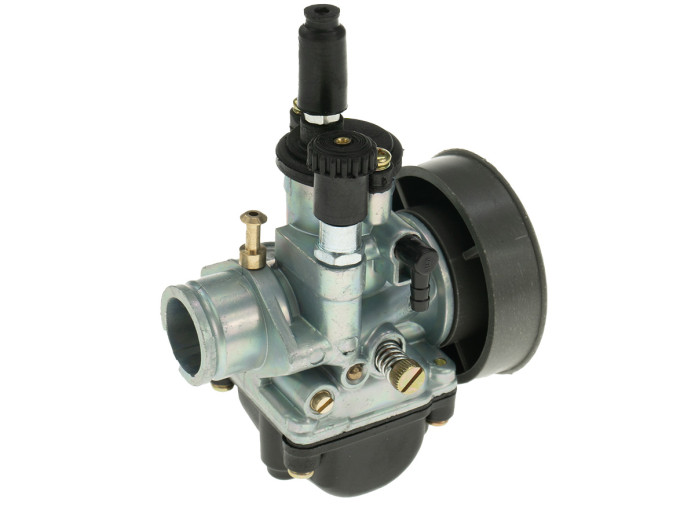

Dellorto PHBG 19mm carburetor replica spigot

Dellorto PHBG 19mm carburetor replica spigot

• Model as Dellorto PHBG, very good replica.
• Hand choke
• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Connection diameter of air filter with adapter ring: 58.50mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a nozzle 85

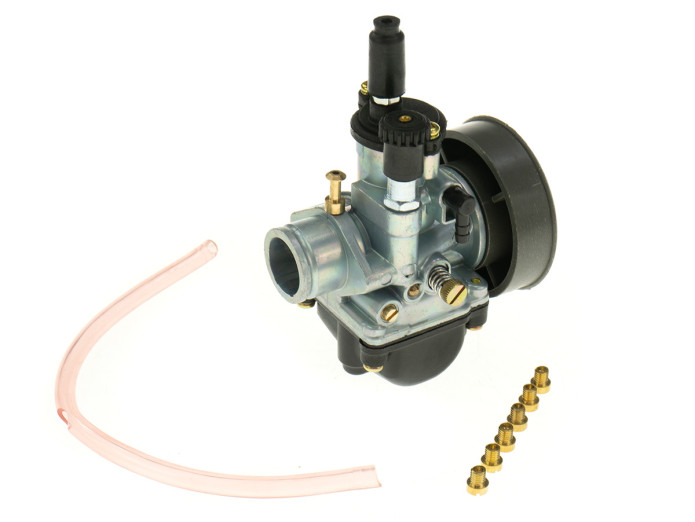

• Carburettor comes with additional nozzle set: 75/80/85/95/100/105
• Carburettors should always be cleaned before installation

Pay attention!

• The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
• The jet that is mounted in the carburettor / set is blank and different for each batch.
• (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted).
• It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.


With a matching manifold applicable to various Puch models:

• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet and KTM hobby with E50 / Z50 / ZA50.
• Also on Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50.

With a matching manifold also universally usable for:

• Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Tomos A3 / A35.
