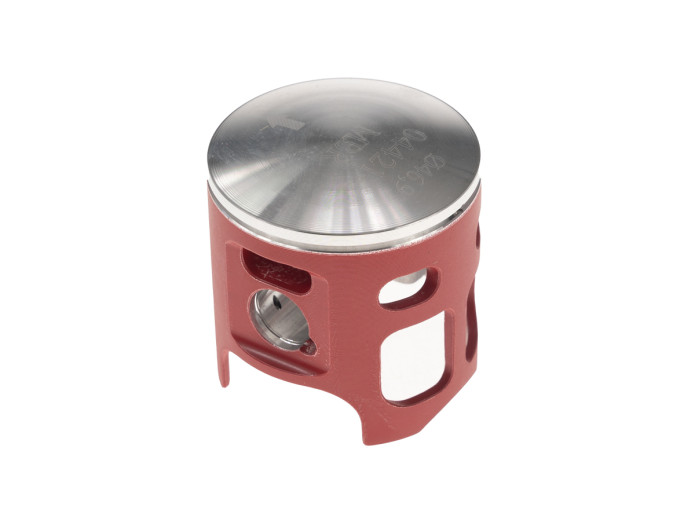

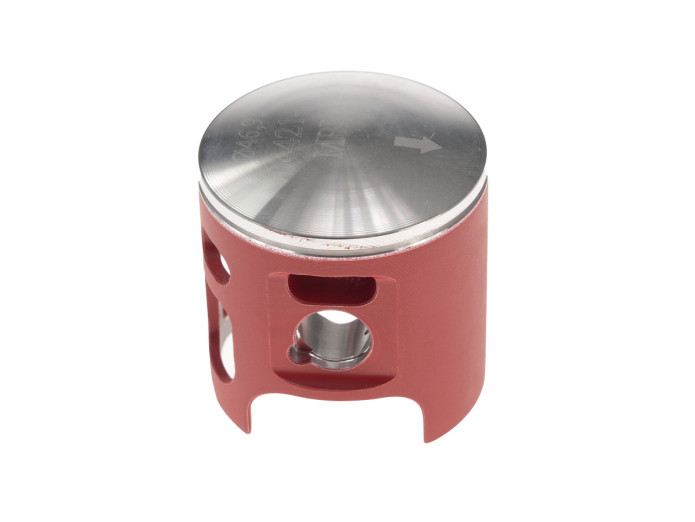

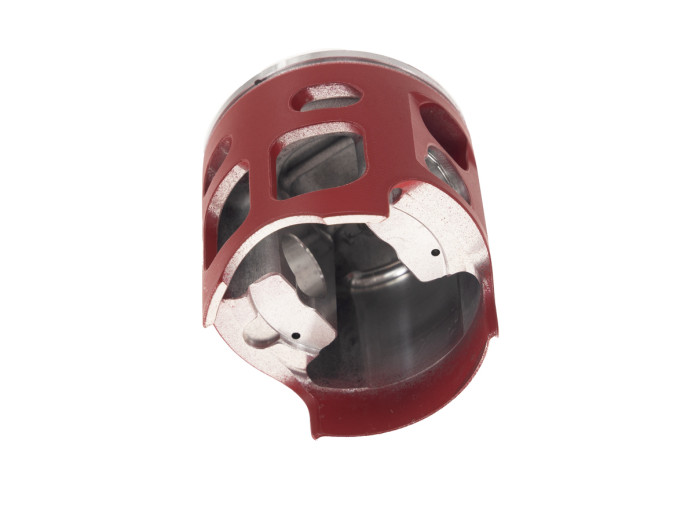

74cc Gilardoni / Italkit MBR Forged Piston by Wössner 47mm (46.93mm)

MBR *High End* Forged piston size 46.93 mm

In cooperation with the company Wössner a high performance piston for the Italkit was developed!

Kit consisting of:

• piston
• 12mm piston pin
• 2 clips
• 1 piston ring

Design is optimal for:

• Gilardoni Italkit 47mm

• Cylinder reed valve inlet (original)
• bigger carburettors (19-32mm)
• high rev (smaller mass / 1-ring only)
• PROX piston pin needle bearing 12x15x16

Recommended size: (coating corresponds to +0.01 to +0.02 mm)

• Italkit cylinder A (47.00): 46.94 mm

• Italkit cylinder B (47.01): 46.95 mm
• Italkit cylinder C (47.02): 46.96 mm
• For extreme conditions (e.g. ASPEN): 46.93 mm

Tip:

• Machining the cylinder head
• Control times unprocessed approx. outlet:180 / overflow:120 / forward outlet:30 / inlet:360 degrees
