Cylinder 70cc OM PSR 6-port Puch Maxi, X30 and other models

Cylinder 70cc OM PSR 6-port Puch Maxi, X30 and other models

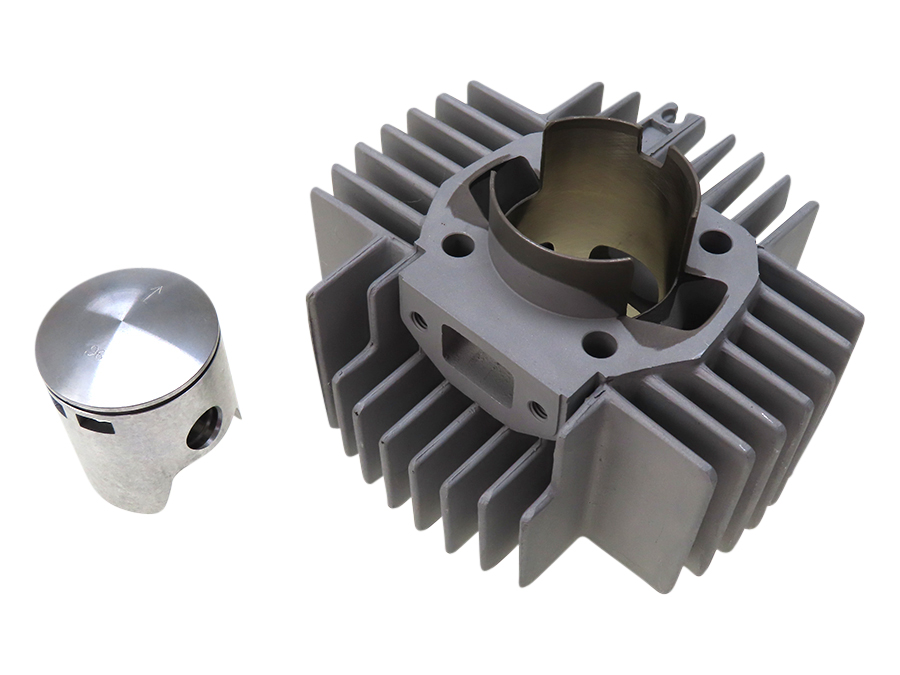

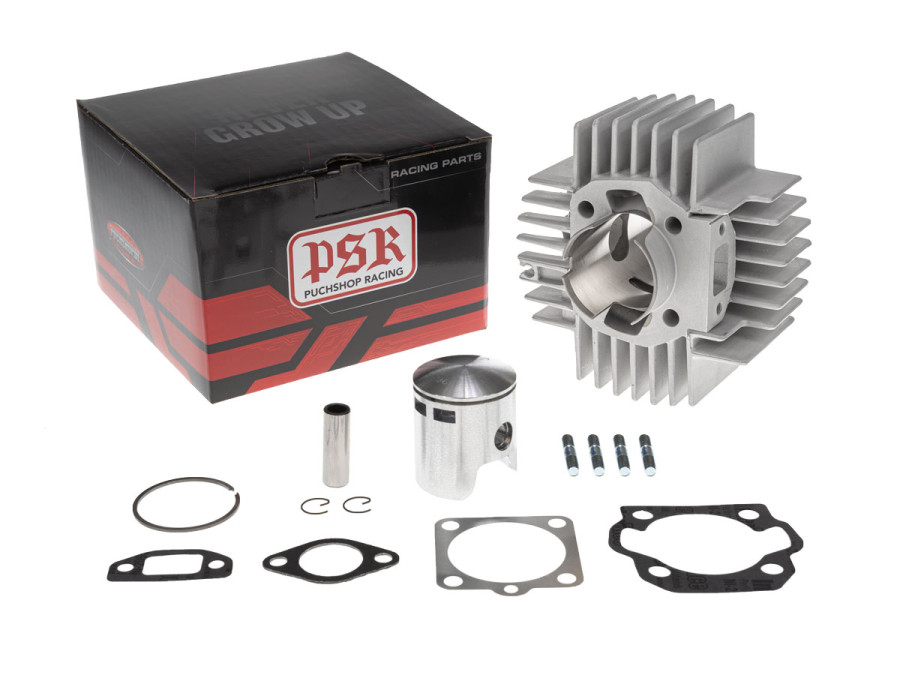

These cylinders from the brand PSR are high quality cylinders specially developed for Puchshop. PSR cylinders are known for their high quality and long life.  The set comes standard with gaskets, piston, piston pin and piston rings.

• Aluminium with Nicasil wall
• 70cc
• Fast 6 port cylinder
• Piston (piston pin 12mm) and gaskets set included
• Old model
• Cylindersleeve outer diameter: 48mm

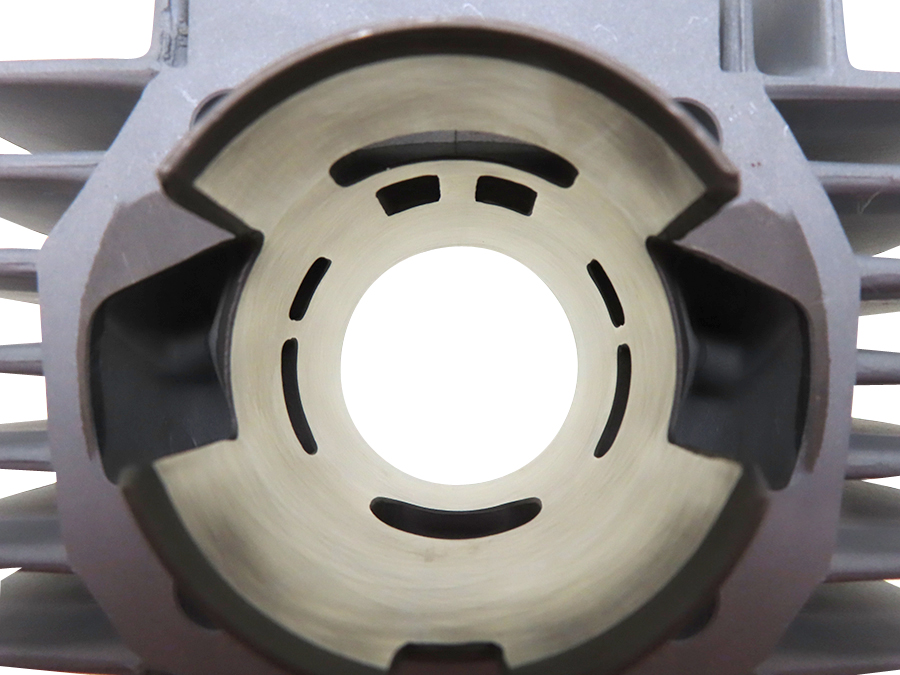

We always advise to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

Measurements cylinder

• A: 7mm
• B: 44mm
• C: M6
• D: 67mm
• E: 24mm
• F: 42mm
• G: M6
• H: 38mm
• I: 23mm
• J: 23mm
• K: 15mm

Measurements piston

• A: 5mm
• B: 22mm
• C: 27mm
• D: 12mm
